Specifications for the Volvo 9700 Double Decker
The Volvo 9700 Double Decker is available in two comfort levels and customised lengths, with multiple options for engine, seat specifications, passenger capacity, interior colour lines, kitchen equipment, toilet, wheel chair lift and much more.
- 4.0 m
- 4.25 m
- not available
- not available
Floor configuration
Low entry
Double-decker
Fuel type
Diesel
HVO
Biodiesel (B100)
Engine output
460 or 500 hp
Passenger capacity
Up to 97 seats
Dimensions
Overall length
13.000-14.800 mm
Overall width
2.550 mm
Overall height
4.000 mm
Wheelbase
5.360-7.160 mm
Bogie distance
1.400 mm
Front overhang
2.810 mm
Rear overhang
3.430 mm
Turning radius, outer front corner
10.040 mm
11.890 mm
12.490 mm
Turning radius, outer front wheel
8.070 mm
9.920 mm
10.520 mm
Weights
Permitted gross vehicle weight (GVW)
26,500 kg kg
Driver station
Driver's seat
ISRI driver's seat
Steering wheel
Available in 450 or 500 mm
Features
Tachograph
Volvo Alcolock
External temperature meter
360° view camera
Rear view camera with a washer
Camera system for mirror replacement
Passenger cabin
Passenger capacity
Up to 97 seats
Passenger seats
Upholstery and overhead section trim
Several interior material and colour alternatives
Interior lighting
Individual reading lights for passengers (LED)
Safety illumination for staircases
Special emergency interior illumination system
Toilet
Water toilet with 100-litre water tank
Wheelchair lift
Available in middle door
Fixed manual ramp or removable ramp
Passenger service equipment
Multiple storage box sizes and locations
Safe box
Features
Curtains or sun blinds for side windows
Fire detection system
Luggage compartment
Luggage compartment volume
Up to 8.0 m³ (LHD version) m³
Up to 11.0 m³ (RHD version) m³
Interior luggage racks volume
Up to 3.0 m³
Audio and video
Passenger information
Passenger display with clock and exterior temperature
Driver and guide microphones
Infotainment
Bosch audio/video system
Two DIN units with radio
Driver's monitor
USB
Subwoofer
DAB+
HDMI
Climate system
Convectors
470 W/m heating capacity at Q60
780 W/m heating capacity at Q100
Defroster
16 kW heating capacity at Q80
5 kW cooling capacity
730 m³/h max airflow at dP 0
Available with/without AC
Auxiliary heater
30 kW heating capacity

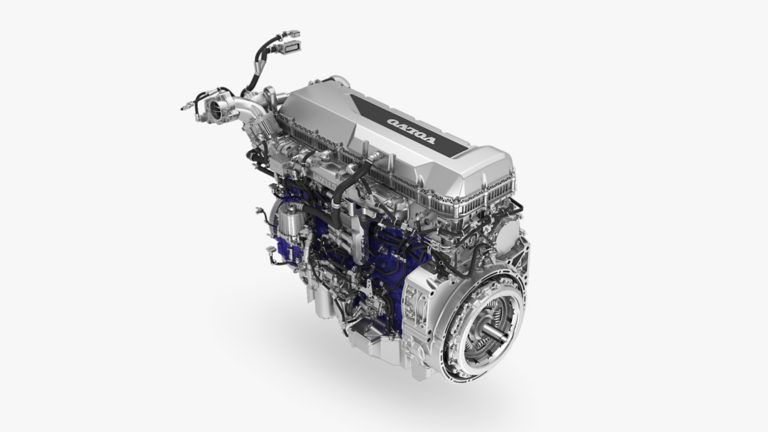

Engine
Tanks
Diesel
690 l
Adblue
64 or 90 l
Left-hand side placement
Fuel efficiency features
Safety systems
Active safety
Collision Warning with Emergency Brake
Collision Warning with City Brake (LHD version only)
Forward Collision Warning (LHD version only)
Intelligent Speed Assist
Side Collision Avoidance Support
Front Short Range Assist
Adaptive Cruise Control
Lane Change Support
Lane Keeping Support
Driver Alert Support
Advanced Driver Distraction Warning
Tire Pressure Monitoring System
Driver support
I-Coaching
Safety Zones
Electronic Stability Control
Protection systems
Front Impact Protection
Knee Impact Protection
Front Underrun Protection (LHD version only)
3-point seat belts
ISOFIX fittings for child seats
Gearbox
Axles
Driving axle
Tag axle
Hydraulic steered/Fixed
Differential lock
Optional
Steering and suspension
Steering wheel side
LHD/RHD
Power steering
Hydraulic power steering
Kneeling
Full side or right front corner
Exhaust system
Design
One box muffler design
Exhaust aftertreatment
Diesel Oxidation Catalyst (DOC)
Diesel Particulate Filter (DPF)
Selective Catalytic Reduction (SCR)
Ammonia Slip Catalyst (ASC)
Features
Automatic regeneration of DPF without driver involvement under normal conditions
On Board Diagnostic (OBD) for emissions, according to step D of emission regulations
Cooling system
Design
Split configuration for heat exchangers with electrical fans to reach better fuel consumption, lower engine compartment temperature and better access for engine service.
Coolant filter
No coolant filter
Features
Higher allowed coolant temperature for better cooling performance and lower fuel consumption
Air and brake system
Brakes
Volvo disc brakes
Braking systems
Electronic Braking System (EBS 5)
Anti-lock Braking System (ABS)
Acceleration Slip Regulation (ASR)
Brake blending
Hill Start Aid
Door brake
Brake Assist
Air system
Pneumatic system, easily filled from external circuit
Features
Automatic calibration after brake pad change
Brake temperature warning
Poor brake performance warning
Lining wear sensing and analysis
Electrical system
Starter batteries
2 x 35 Ah
Alternators
4 x 150 A (max output)
Consumer batteries
2 x 210 Ah
Start system
Features
Automatic shut off of main switch at low voltage level
Automatic circuit breakers
Exterior and structure
Body builder
Carrus Delta OY
Body construction
Stainless steel in body structure and side paneling
Front and rear wall in one piece composite material
Anti-corrosion treatment of underbody frame with conservation and silencing agent
Glazing
Electrical heating system and UV protection in windscreen
Side window with light and dark tinted double glazing
Rear window with dark tinted double glazing
Driver window electrically operated, heated single glazing
Doors with double glazing
Lights
Bi-Xenon headlights with LED DRL
Other
Brackets for ski-box or cycle carrier in the rear
Central locking of luggage compartment
Good access to service and maintenance locations
Doors and door system
Opening direction
First door outward or inward swinging
Second door outward swinging
Third door outward swinging
Wheels and tyres
Tyres
315/70 R22.5″
Rims
Steel, aluminium and Dura-Bright® rims available
9.00″ x 22.5″
Spare wheel
Optional
Get the specification in a PDF
Want it all in one document? Download a pdf with all the specifications, facts and figures.
Floor configuration
Low floor
Double-decker
Fuel type
Diesel
HVO
Biodiesel (B100)
Engine output
460 or 500 hp
Passenger capacity
Up to 97 seats
Dimensions
Overall length
13.000-14.800 mm
Overall width
2.550 mm
Overall height
4.250 mm
Wheelbase
5.360-7.160 mm
Bogie distance
1.400 mm
Front overhang
2.810 mm
Rear overhang
3.430 mm
Turning radius, outer front corner
10.040 mm
11.890 mm
12.490 mm
Turning radius, outer front wheel
8.070 mm
9.920 mm
10.520 mm
Weights
Permitted gross vehicle weight (GVW)
26,500 kg kg
Driver station
Driver's seat
ISRI driver's seat
Steering wheel
Available in 450 or 500 mm
Features
Tachograph
Volvo Alcolock
External temperature meter
360° view camera
Rear-view camera with a washer
Camera system for mirror replacement
Passenger cabin
Passenger capacity
Up to 97 seats
Passenger seats
Upholstery and overhead section trim
Several interior material and colour alternatives
Interior lighting
Individual reading lights for passengers (LED)
Safety illumination for staircases
Special emergency interior illumination system
Toilet
Water toilet with 100-litre water tank
Wheelchair lift
Available in middle door
Fixed manual ramp or removable ramp
Passenger service equipment
Multiple storage box sizes and locations
Safe box
Features
Curtains or sun blinds for side windows
Fire detection system
Luggage compartment
Luggage compartment volume
Up to 7.5 m³ (LHD version) m³
Up to 11.0 m³ (RHD version) m³
Interior luggage racks volume
Up to 3.0 m³
Audio and video
Passenger information
Passenger display with clock and exterior temperature
Driver and guide microphones
Infotainment
Bosch audio/video system
Two DIN units with radio
Driver's monitor
USB
Subwoofer
DAB+
HDMI
Climate system
Convectors
470 W/m heating capacity at Q60
780 W/m heating capacity at Q100
Defroster
16 kW heating capacity at Q80
5 kW cooling capacity
730 m³/h max airflow at dP 0
Available with/without AC
Auxiliary heater
30 kW heating capacity
Engine
Tanks
Diesel
690 l
Adblue
64 or 90 l
Left-hand side placement
Fuel efficiency features
Safety systems
Active safety
Collision Warning with Emergency Brake
Collision Warning with City Brake (LHD version only)
Forward Collision Warning (LHD version only)
Intelligent Speed Assist
Side Collision Avoidance Support
Front Short Range Assist
Adaptive Cruise Control
Lane Change Support
Lane Keeping Support
Driver Alert Support
Advanced Driver Distraction Warning
Tire Pressure Monitoring System
Driver support
I-Coaching
Safety Zones
Electronic Stability Control
Protection systems
Front Impact Protection
Knee Impact Protection
Front Underrun Protection (LHD version only)
3-point seat belts
ISOFIX fittings for child seats
Gearbox
Axles
Driving axle
Tag axle
Hydraulic steered/Fixed
Differential lock
Optional
Steering and suspension
Steering wheel side
LHD/RHD
Power steering
Hydraulic power steering
Kneeling
Full side or right front corner
Exhaust system
Design
One box muffler design
Exhaust aftertreatment
Diesel Oxidation Catalyst (DOC)
Diesel Particulate Filter (DPF)
Selective Catalytic Reduction (SCR)
Ammonia Slip Catalyst (ASC)
Features
Automatic regeneration of DPF without driver involvement under normal conditions
On Board Diagnostic (OBD) for emissions, according to step D of emission regulations
Cooling system
Design
Split configuration for heat exchangers with electrical fans to reach better fuel consumption, lower engine compartment temperature and better access for engine service.
Coolant filter
No coolant filter
Features
Higher allowed coolant temperature for better cooling performance and lower fuel consumption
Air and brake system
Brakes
Volvo disc brakes
Braking systems
Electronic Braking System (EBS 5)
Anti-lock Braking System (ABS)
Acceleration Slip Regulation (ASR)
Brake blending
Hill Start Aid
Door brake
Brake Assist
Air system
Pneumatic system, easily filled from external circuit
Features
Automatic calibration after brake pad change
Brake temperature warning
Poor brake performance warning
Lining wear sensing and analysis
Electrical system
Starter batteries
2 x 35 Ah
Alternators
4 x 150 A (max output)
Consumer batteries
2 x 210 Ah
Start system
Features
Automatic shut off of main switch at low voltage level
Automatic circuit breakers
Exterior and structure
Body builder
Carrus Delta OY
Body construction
Stainless steel in body structure and side paneling
Front and rear wall in one piece composite material
Anti-corrosion treatment of underbody frame with conservation and silencing agent
Glazing
Electrical heating system and UV protection in windscreen
Side window with light and dark tinted double glazing
Rear window with dark tinted double glazing
Driver window electrically operated, heated single glazing
Doors with double glazing
Lights
Bi-Xenon headlights with LED DRL
Other
Brackets for ski-box or cycle carrier in the rear
Central locking of luggage compartment
Good access to service and maintenance locations
Doors and door system
Opening direction
First door outward or inward swinging
Second door outward swinging
Third door outward swinging
Wheels and tyres
Tyres
315/70 R22.5″
Rims
Steel, aluminium and Dura-Bright® rims available
9.00″ x 22.5″
Spare wheel
Optional
Get the specification in a PDF
Want it all in one document? Download a pdf with all the specifications, facts and figures.
Do more with your Volvo 9700 Double Decker
Driver's handbook
Download the driver’s handbook for your specific vehicle as a PDF for free.
Service manuals
Are you maintaining your own fleet? Volvo keeps an online library of service manuals and wiring diagram, for your convenience.
Get access to service manuals
Find spare parts
Volvo dealers offer stock parts and can assist with special orders. For regular orders, you can also register to order parts online.
Get driver training
Volvo offers driver training, for improved passenger satisfaction, environmental performance and energy efficiency. Start today!
