Specifications for Volvo 7800 Electric Articulated and Bi-articulated
Dimensions
Model | Articulated | Bi-articulated |
| Maximum chassis length | 18,500 mm | 25,600 mm |
| Total height | 3,437 mm | 3,437 mm |
| Width | 2,559 mm | 2,559 mm |
| Front overhang | 2,696 mm | 2,696 mm |
| Rear overhang | 3,690 mm | 3,690 mm |
| Height to access doors | 1,000 mm | 1,000 mm |
| Permitted GVW | 34,000 kg | 47,000 kg |
Driver’s environment
Digital instrument cluster |
| Steering wheel buttons for easy access |
| Speedometer |
| Charging information |
| State of Charge (SOC) in % |
| Remaining autonomy |
| Econometer |
All-Volvo powertrain
The Volvo 7800 Electric is an all-Volvo design and part of the Volvo group-wide e-mobility architecture. All components are designed and manufactured to work perfectly together. This means that technical documentation and spare parts compatibility are always up to date, ensuring swift and efficient maintenance.

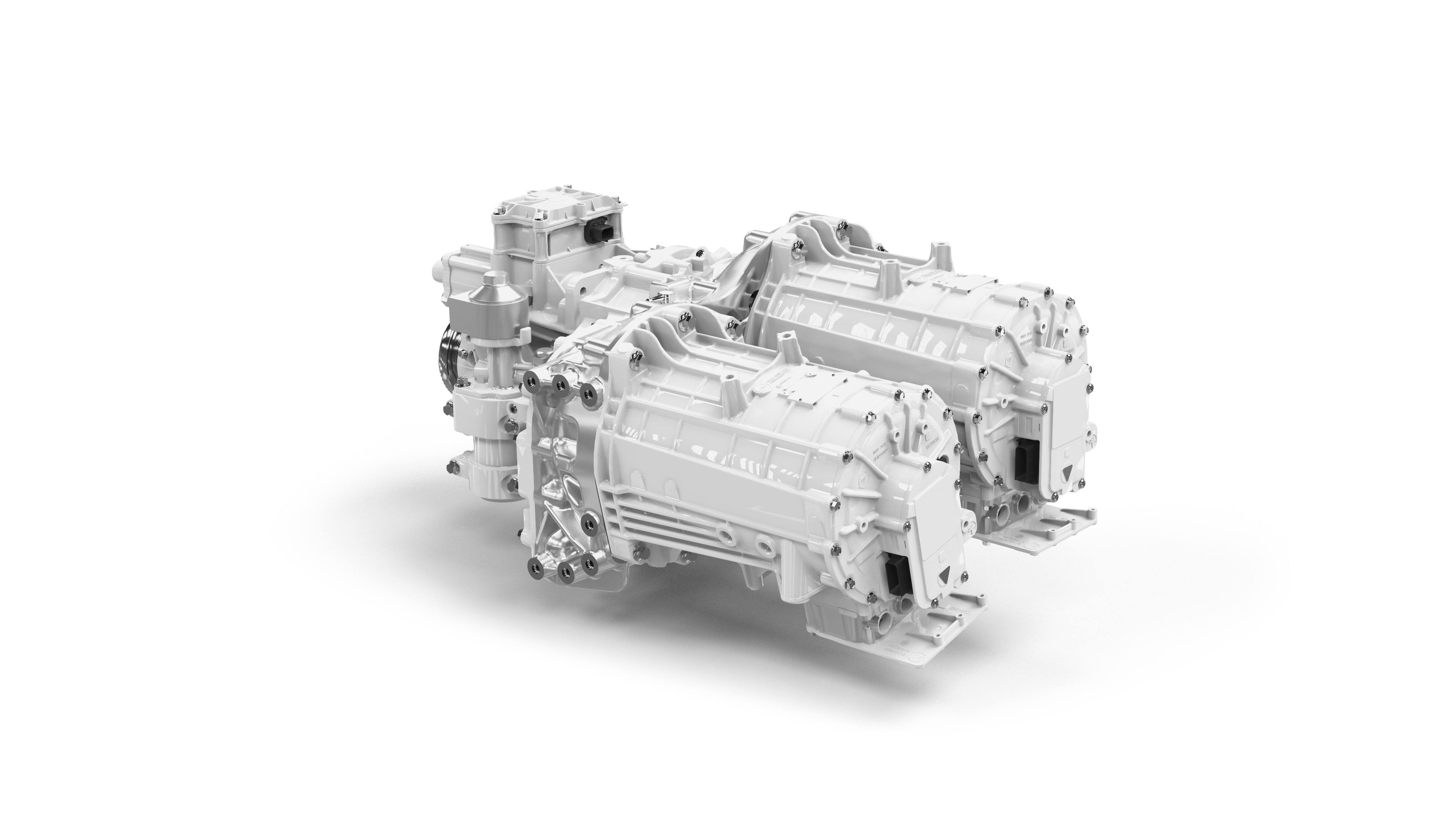

| Electric motors | Volvo EPT802 dual electric motors |
| Power output, max (R85) | 2x200 kW |
| Traction voltage | 600 V |
| Energy storage | 540 kWh or 630 kWh (Articulated), 540 kWh, 630 kWh or 720 kWh (Bi-articulated) |
Gearbox
| 2-speed automated mechanical transmission, based on Volvo I-Shift Technology |
Volvo Ready-to-Run
| Internal functionality which keeps the traction batteries at working temperature, to ensure that the bus can be started directly without pre-heating. |
| The 24 V batteries are charged from the 600 V battery |
Batteries thermal management system
| Coolant level warning in instrument cluster |
| Automated control of battery temperature with active cooling/heating system |
| Electric powertrain and auxiliary cooling circuit |
| Heat dissipation from powertrain circuit is recovered by a heat exchanger |
Charging
| CCS2 DC |
| Maximum charge power 250 kW |
| Front right charging |
Active safety systems
| Collision Warning with Emergency Brake |
| Collision Warning with City Brake |
| Forward Collision Warning |
| Intelligent Speed Assist |
| Side Collision Avoidance Support |
| Front Short Range Assist |
| Lane Keeping Support |
| Lane Change Support |
| Driver Alert Support |
| Tire Pressure Monitoring System |
Safer driving
| I-Coaching |
| Volvo Dynamic Steering (optional) |
| Safety Zones |
| Electronic Stability Control |
Suspension and axles
| Electronically controlled air suspension available on all variants |
| Volvo Beam Axle (front) and Volvo’s single reduction rear axle with optimized ratios |
Brakes
| Forward Collision Warning |
| Electronic Braking System (EBS 5) |
| Electronic Stability Control (ESC) |
